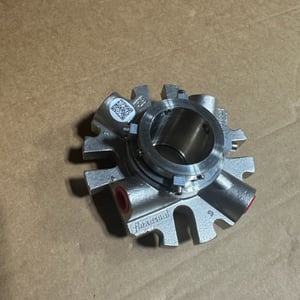

ANSI SINGLE CARTRIDGE SEAL. These seals are good for Gould’s 3196, Gould’s 3175 etc. Sizes from 1.375″ to 2.625″, with aflas o-rings, and sic/carbon or sic/sic faces.

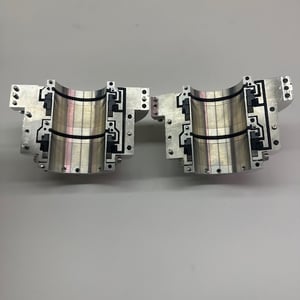

TF SP02 double split seal is the only patented true two-piece double split seal.
Design: • Reversible seal head design • External non-clogging wave spring • Compatible with ANSI B73.1M and ISO 3069 seal chambers • Primary ring optimized for enhanced reliability • Outboard seal drive without set screws • Tangential inlet and outlet pipe connections for sizes below 3.000″/75mm
TFV-ANSI Series is designed for a general service tandem or dual seal application for lower temperatures and pressures. It’s designed to support liquid buffer fluid for a containment seal chamber.
Features: – 304 stainless steel construction – 6-inch body with flat bottom and top – Tubular level gauge or Flat armor level gauge – Liquid filled pressure gauge – Orifice union – Ball valves on vent and drain – Closed loop arrangement for monitoring the inboard seal

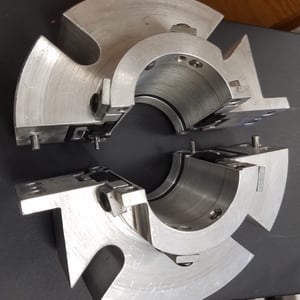

• Single Seal Cartridge • Balanced Design • Non-clogging with Positive Drive to Stationary Seal Face • No Need to Dismantle Any Equipment, Large or Small • Temperature: Up to 121°C (250°F) • Pressure: 13.7 bar (200 PSI) • Sliding Velocity: – Up to 62mm (2.500″): 3600 rpm – Between 62mm (2.500″) and 135mm (5.250″): 1800 rpm – Over 135mm (5.250″): 900 rpm
