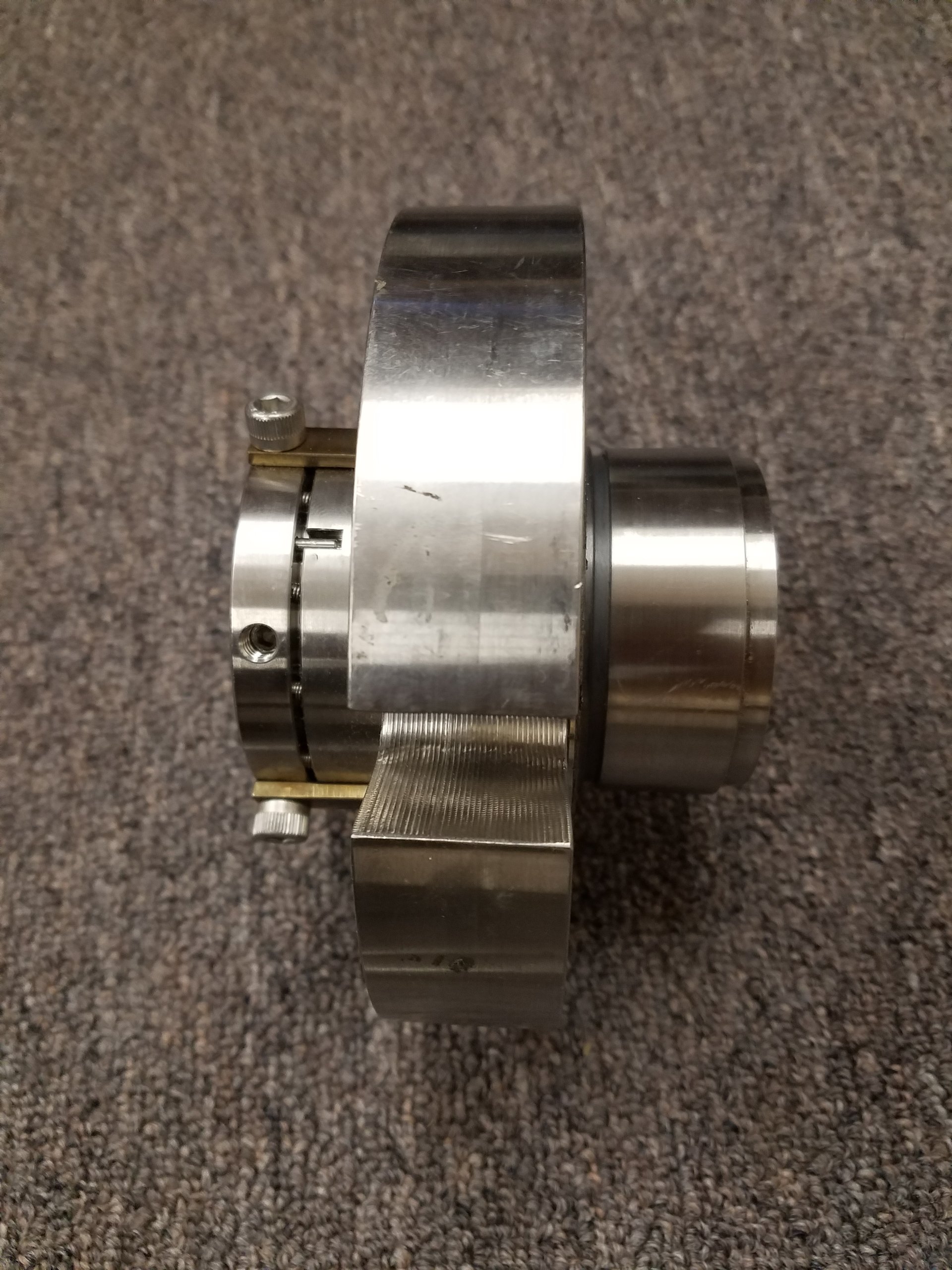

DUAL CARTRIDGE SEAL
DUAL CARTRIDGE SEAL
In stock
$1,332.80
Design:
• Reversible seal head design
• External non-clogging wave spring
• Compatible with ANSI B73.1M and ISO 3069 seal chambers
• Primary ring optimized for enhanced reliability
• Outboard seal drive without set screws
• Tangential inlet and outlet pipe connections for sizes below 3.000″/75mm
• Temperature Range: -20°F to 400°F / -30°C to 205°C
• Pressure Capacity: Up to 21 barg (300 psig) for sizes up to 75mm (3.000″); up to 13 barg (200 psig) for sizes 75mm (3.000″) and larger
• Speed: Up to 25 m/s (5,000 fpm)
• Axial Float/End Play Tolerance: 0.13mm (0.005″)
• Runout/Squareness Tolerance: 0.05mm (0.002″)
